A combination of logic gates has the truth table below.
| P | Q | Z |
| 0 | 0 | 0 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 1 |

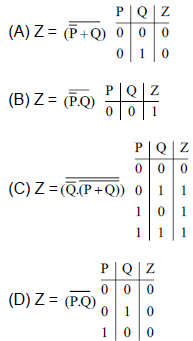

Which of the following combinations has this truth table ?
Answer & explanation
Correct answer: option 3
A combination of logic gates has the truth table below.
| P | Q | Z |
| 0 | 0 | 0 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 1 |
Which of the following combinations has this truth table ?
Correct answer: option 3
