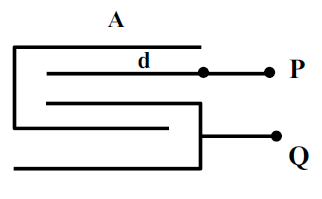

The equivalent capacitance between P & Q in the figure is
Answer & explanation
Correct answer: option 4

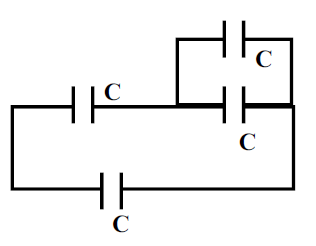

Equivalent circuit is shown in figure
$C_{eq}=C+\frac{C \times 2 C}{C+2 C}$
$=C+\frac{2}{3} C=\frac{5}{3} C=\frac{5 A \varepsilon_0}{3 d}$
∴ (D)
