Question:

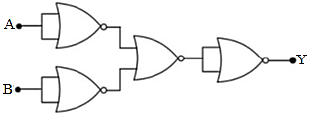

The circuit as shown in the figure is equivalent to:

Options:

AND gate

NOR gate

OR gate

NAND gate

Correct Answer:

NAND gate

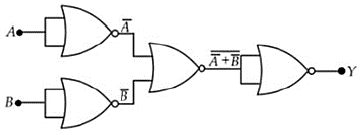

Explanation:

$Y=\overline{\bar A+\bar B}=\bar A+\bar B=\overline{AB}$

It is a Boolean expression for NAND gate.
