The equivalent resistance between the terminals A and D in the following circuit is:
Answer & explanation
Correct answer: option 2

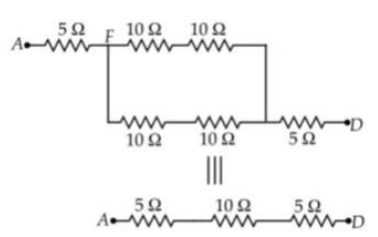

The equivalent circuit is as shown in figure.
∴ Effective resistance between A and D = 5Ω + 10Ω + 5Ω = 20 Ω
The equivalent resistance between the terminals A and D in the following circuit is:
Correct answer: option 2
The equivalent circuit is as shown in figure.
∴ Effective resistance between A and D = 5Ω + 10Ω + 5Ω = 20 Ω
