Two pillars A and B of the same height are on opposite sides of a road which is 100 m wide. The angles of elevation of the top of the pillars A and B are 60° and 45° respectively, from a point on the road between the pillars. What is the distance (in m) of the point from the foot of pillar A? |
50(√3 - 1) m 50(3 - √3) m 173.2 m 50 m |
50(√3 - 1) m |

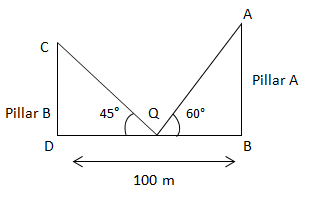

Let AB = CD = (x) m In ΔABQ: ⇒ tan 60° = \(\frac{AB}{BQ}\) ⇒ \(\frac{\sqrt {3}}{1}\) = \(\frac{AB}{BQ}\) Here, AB = \(\sqrt {3}\) and BQ = 1 ................(i)
In ΔCDQ: ⇒ tan 45° = \(\frac{CD}{DQ}\) ⇒ \(\frac{1}{1}\) = \(\frac{CD}{DQ}\) ⇒ \(\frac{\sqrt {3}}{\sqrt {3}}\) = \(\frac{CD}{DQ}\) [because CD = AB] Here, CD = \(\sqrt {3}\) and DQ = \(\sqrt {3}\) .................(ii) From (i) and (ii) ⇒ DB = DQ + QB = [\(\sqrt {3}\) + 1]R ⇒ [\(\sqrt {3}\) + 1]R = 100 (given) ⇒ 1R = \(\frac{100}{\sqrt {3}\;+\;1}\) = \(\frac{100}{2}\) (\(\sqrt {3}\) - 1) = 50 (\(\sqrt {3}\) - 1) So, Distance between point B and Q = 1R = 50 (\(\sqrt {3}\) - 1) m |
