a b c d |
a |

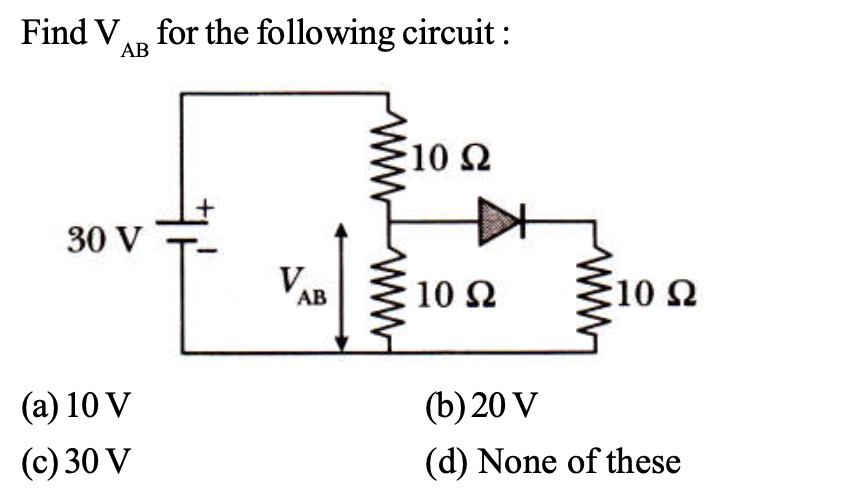

$\text{Diode is in forward bias so it will offer zero resistance}$ $ R_{eq} = 5\Omega + 10\Omega = 15\Omega$ $\Rightarrow I = \frac{30}{15} = 2A $ $\text{ 2A will get distributed equally between two }10\Omega \text{ resistances}$ $ V_{AB} = 10\times 1 = 10V$ |
