Physics
Semiconductors and Electronic Devices
a
b
c
d

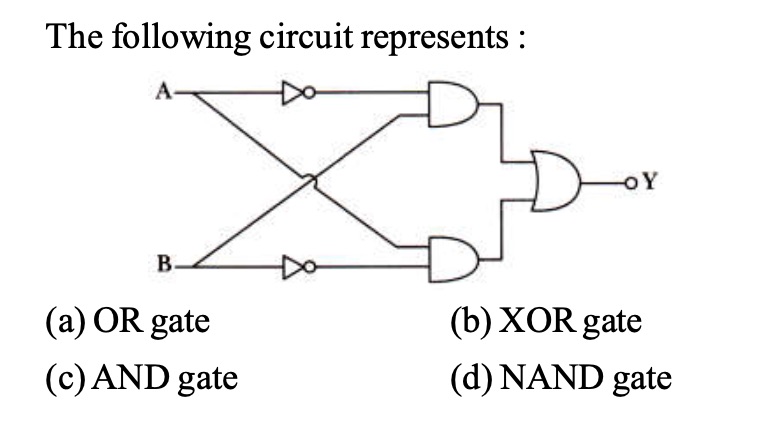

Output of upper AND gate =$\overline{A}B$Output of lower AND gate =$\overline{B}A$Thus, output of OR gate =$\overline{A}B$ + $\overline{B}A$$\text{This is Boolean expression for XOR gate.}$
