The area of the region given by \(\{(x, y): y\ge x^2,\ y\le |x|+2\}\) is
Answer & explanation
Correct answer: option 3
The correct answer is Option (3) → \(\displaystyle\frac{20}{3}\) sq. units

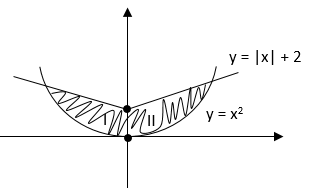

The region lies above the parabola \(y=x^2\) and below the V-shaped graph \(y=|x|+2\). Both curves are symmetric about the y-axis, so the area is twice the area for \(x\ge 0\).
For \(x\ge 0\) the upper boundary is y = x + 2. The curves meet where
\(x^2=x+2\)
\(x^2-x-2=0\)
\((x-2)(x+1)=0,\quad x=2\ (x\ge 0)\)
Area for \(0\le x\le 2\):
\( \displaystyle \int_{0}^{2}\left(x+2-x^2\right)dx=\left[\frac{x^2}{2}+2x-\frac{x^3}{3}\right]_{0}^{2} \)
\( \displaystyle =2+4-\frac{8}{3}=\frac{10}{3} \)
Total area:
\( \displaystyle 2\times\frac{10}{3}=\frac{20}{3} \) sq. units
