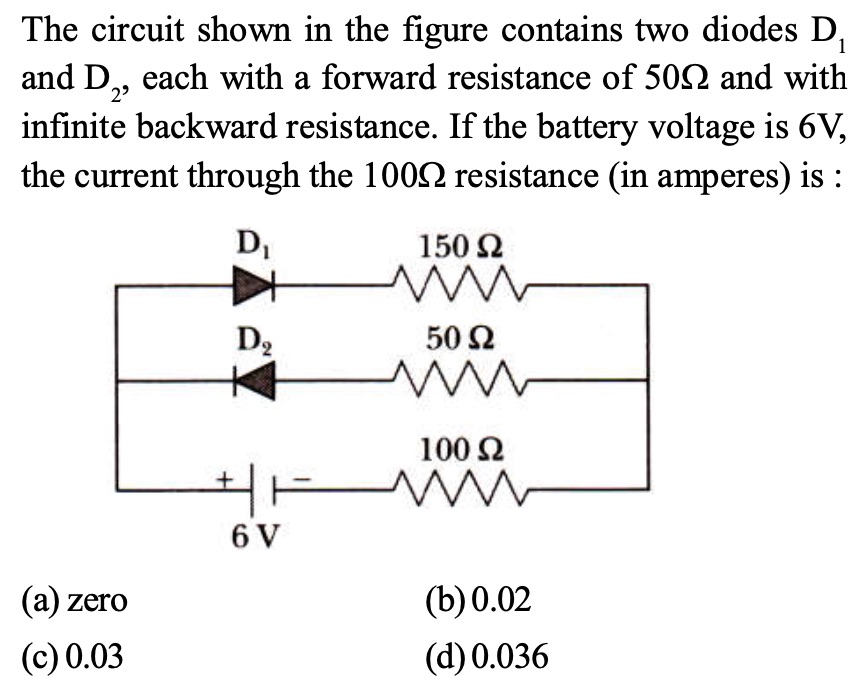

Question:

Options:

a

b

c

d

Correct Answer:

b

Explanation:

$\text{Diode }D_1 \text{is in forward bias and diode }D_2 \text{is in reverse bias}$

$\text{ Current will pass through }D_1 \text{only}.$

$ I = \frac{6}{100+150+50} = 0.02A$
