Question:

Options:

a

b

c

d

Correct Answer:

b

Explanation:

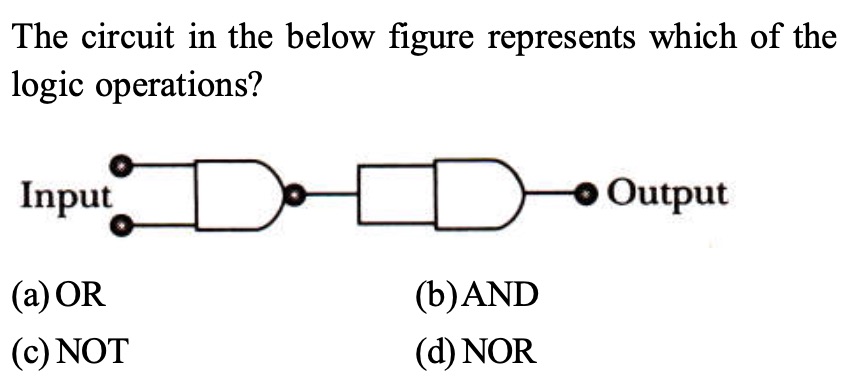

The two gates shown are NAND gates.
The output of first gate is $\bar{A.B}$

Final Output $Y = \bar{\bar{A.B}}= A.B $
Thus the given combination behaves as an AND gate.
