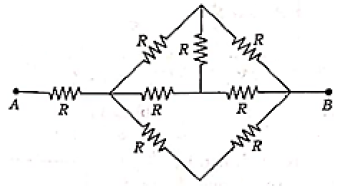

In the given network of resistances, the effective resistance between A and B is:
Answer & explanation
Correct answer: option 1

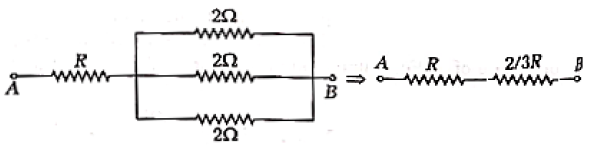

The given circuit consists of a balanced Wheatsone bridge.
∴ Rnet = R + $\frac{2}{3}$R = $\frac{5}{3}$R
