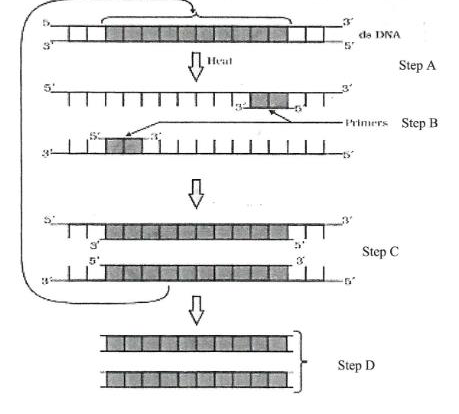

Answer the questions from the figure given below:

If the reaction starts with one molecule of DNA, the number of cycles required to produce one billion amplified products is:
Answer & explanation
Correct answer: option 3
The correct answer is Option (3) → 30 cycles
Each cycle of PCR doubles the DNA. Starting from one molecule, after n cycles there are 2n copies.
210 = 1024 ≈ 103, so 230 = (210)3 ≈ 109 = one billion copies after 30 cycles.
Option (1) 8 cycles — Incorrect. 28 = 256 copies only.
Option (2) 16 cycles — Incorrect. 216 = 65,536 copies, far short of a billion.
Option (3) 30 cycles — Correct. In PCR, each cycle doubles the DNA, so after n cycles one molecule gives 2n copies. 230 is about 109, so 30 cycles give about one billion copies.
Option (4) 25 cycles — Incorrect. 225 is about 3.4 crore (3.4 × 107), still about 30 times less than a billion.
NCERT Extract:
Amplification of Gene of Interest Using PCR – “… If the process of replication of DNA is repeated many times, the segment of DNA can be amplified to approximately billion times, i.e., 1 billion copies are made. Such repeated amplification is achieved by the use of a thermostable DNA polymerase (isolated from a bacterium, Thermus aquaticus), which remain active during the high temperature induced denaturation of double stranded DNA.”
