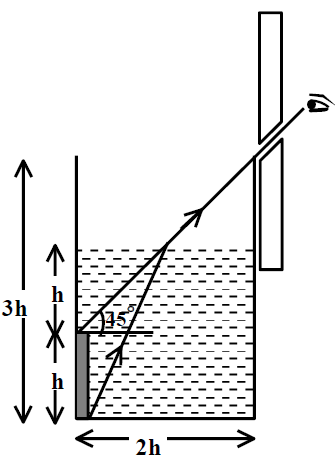

An observer can see through a pin-hole the top end of a thin rod of height h, placed as shown in the figure. The beaker height is 3h and its radius h. When the beaker is filled with a liquid up to a height 2h, he can see the lower end of the rod. Then the refractive index of the liquid is |
$\frac{5}{2}$ $\sqrt{\frac{5}{2}}$ $\sqrt{\frac{3}{2}}$ $\frac{3}{2}$ |
$\sqrt{\frac{5}{2}}$ |
$\sin i /\sin r = 1/μ; r = 45°;$ $\sin i = 1/\sqrt{5} ⇒ μ = (5/2)^{1/2}$. |
