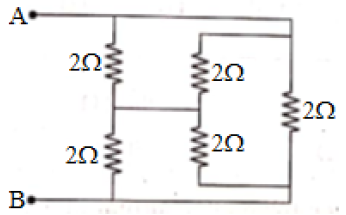

Find the equivalent resistance across AB:
Answer & explanation
Correct answer: option 1

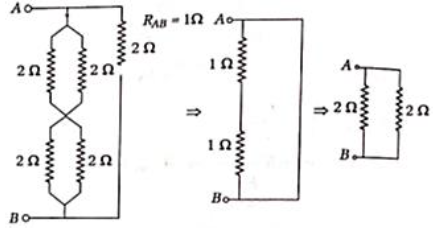

The simple circuit is as shown below:
∴ The equivalent resistance across AB,
Req = $\frac{2 \times 2}{2+2}$ = 1 Ω
Find the equivalent resistance across AB:
Correct answer: option 1
The simple circuit is as shown below:
∴ The equivalent resistance across AB,
Req = $\frac{2 \times 2}{2+2}$ = 1 Ω
