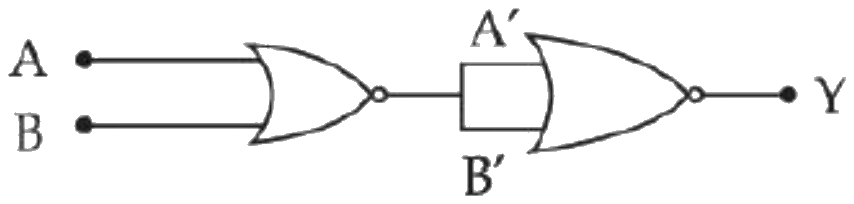

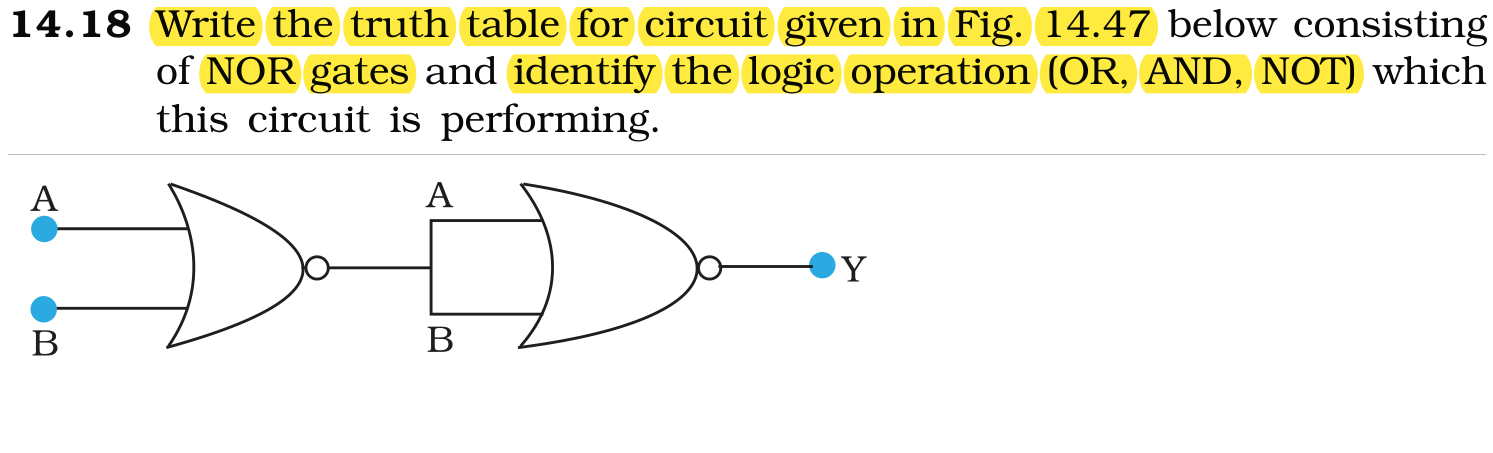

Identify the logic operation carried out by the given circuit.

Options:

OR

AND

NOT

NAND

Correct Answer:

OR

Explanation:

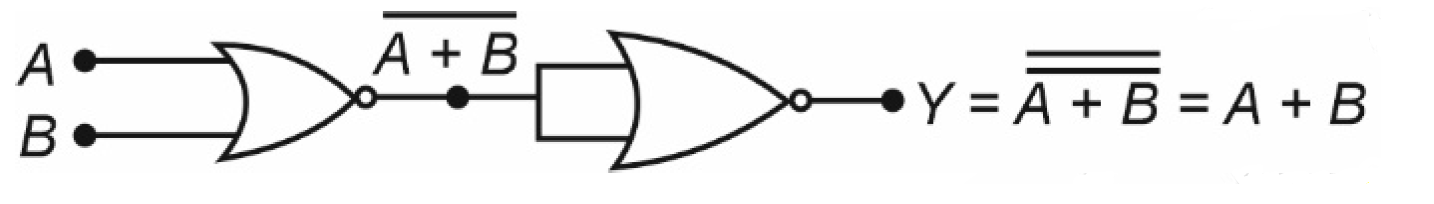

The correct answer is Option (1) → OR

Hence the logic circuit realizes ‘OR’ gate.
