Three resistances 5Ω, 5Ω and 6Ω are connected as shown in figure. If the point S divides the resistance 6Ω into two equal halves, the resistance between points P and S is :
|
11Ω 8Ω 6Ω 4Ω |
4Ω |

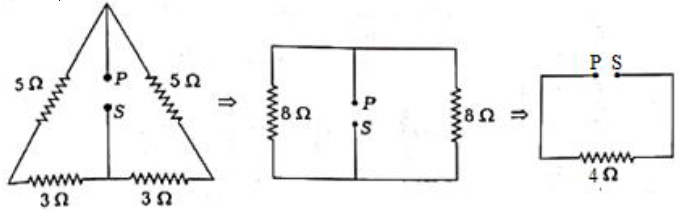

The circuit can be drawn as
Resistance between points P and S = 4Ω |
