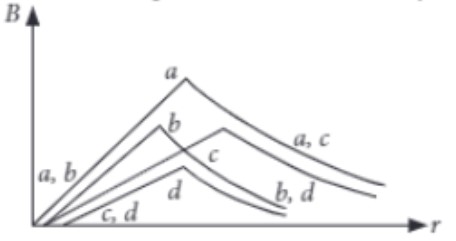

Case : Read the passage and answer the question(s). Magnetic Field of a hollow wire with a constant current is homogenous. Curves in the graph shown, give, as functions of distance r, the magnitude B of the magnetic field inside and outside four long wires a, b, c and d carrying currents that are uniformly distributed across the cross sections of the wires. Overlapping portions of the plots are indicated by double labels. |
Which wire has the greatest magnitude of the magnetic field on the surface? |
a b c d |
a |
slope of curve for wire a is greatest. |
