Two point light sources are 24cm apart. At what distance from one source, a convex lens of focal length 9cm be kept in between them, so that the images of both the sources are formed at the same place. |
6 cm 9 cm 12 cm 15 cm |
6 cm |

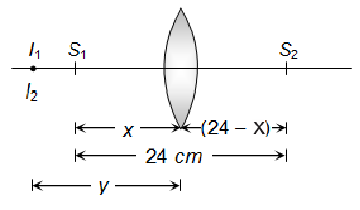

The given condition will be satisfied only if one source (S1) placed on one side such that u < f (i.e. it lies under the focus). The other source (S2) is placed on the other side of the lens such that u > f (i.e. it lies beyond the focus). If S1 is the object for lens then $\frac{1}{f}=\frac{1}{-y}-\frac{1}{-x} \Rightarrow \frac{1}{y}=\frac{1}{x}-\frac{1}{f}$ .................(i) If S2 is the object for lens then $\frac{1}{f}=\frac{1}{+y}-\frac{1}{-(24-x)} \Rightarrow \frac{1}{y}=\frac{1}{f}-\frac{1}{(24-x)}$ ..........(ii) From equation (i) and (ii) $\frac{1}{x}-\frac{1}{f}=\frac{1}{f}-\frac{1}{(24-x)}$ $\frac{1}{x}+\frac{1}{(24-x)}=\frac{2}{f}=\frac{2}{9}$ $\Rightarrow x^2-24 x+108=0$ On solving we have x = 18 cm, 6 cm |
