Practicing Success

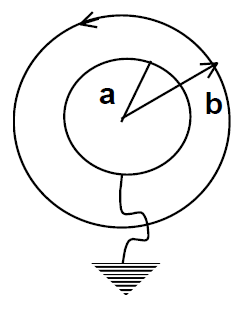

Sphere in the figure is a spherical capacitor with inner sphere earthed. The capacitance of the system is |
$\frac{4 \pi \varepsilon_0 a b}{b-a}$ $\frac{4 \pi \varepsilon_0 b^2}{b-a}$ $4 \pi \varepsilon_0(b+a)$ none of these |
$\frac{4 \pi \varepsilon_0 b^2}{b-a}$ |

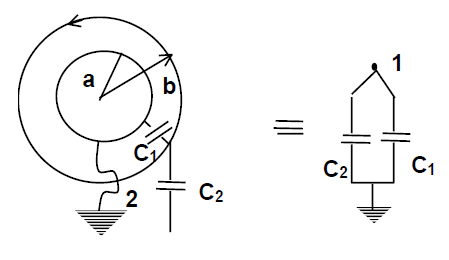

The potential on the outer sphere is V (let). Thus we can consider two capacitors between the outer sphere and inner sphere C1 and outer sphere and earth C2. These two capacitors are in parallel. Thus, $C_1=4 \pi \varepsilon_0 \frac{ab}{b-a}$ $C_2=4 \pi \varepsilon_0 b$ $C_1=4 \pi \varepsilon_0 \frac{ab}{b-a}+4 \pi \varepsilon_0 b$ $\Rightarrow C=\frac{4 \pi \varepsilon_0 b^2}{b-a}$ ∴ (B) is correct. |
