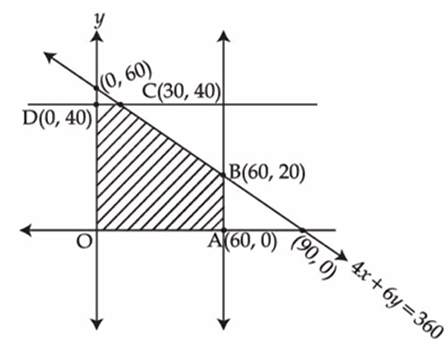

For the given figure all the constraints are:
Answer & explanation
Correct answer: option 1
The correct answer is Option (1) → \(4x+6y \le 360\), \(3x \le 180\), \(5y \le 200\), \(x \ge 0,\ y \ge 0\)
The shaded region OABCD lies in the first quadrant, so \(x \ge 0,\ y \ge 0\). For each boundary line, the side containing the origin is found by putting (0, 0) into it, since O is a point of the region.
The vertical line through A(60, 0) and B(60, 20) is x = 60, that is, 3x = 180. The region is on the origin side:
\(3x \le 180\)
The horizontal line through D(0, 40) and C(30, 40) is y = 40, that is, 5y = 200. Again the origin side:
\(5y \le 200\)
The slanting line 4x + 6y = 360 passes through (90, 0), (0, 60), B and C. At the origin 4(0) + 6(0) = 0 < 360, and the region is on the origin side:
\(4x + 6y \le 360\)
All three are “≤” constraints, which is Option (1). Each other option has at least one “≥”, which would put the region on the side away from the origin.
