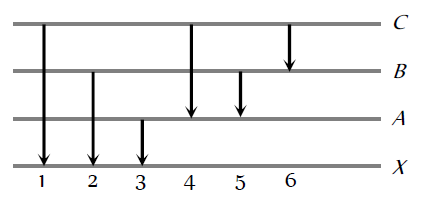

The figure indicates the energy level diagram of an atom and the origin of six spectral lines in emission (e.g. line no. 5 arises from the transition from level B to A). The following spectral lines will also occur in the absorption spectrum. |
1, 4, 6 4, 5, 6 1, 2, 3 1, 2, 3, 4, 5, 6 |
1, 2, 3 |
The absorption lines are obtained when the electron jumps from ground state (n = 1) to the higher energy states. Thus only 1, 2 and 3 lines will be obtained. |
