Home/Practice questions/Physics
PhysicsSemiconductors and Electronic Devices

In the circuit shown in figure, if the diode forward voltage drop is…

In the circuit shown in figure, if the diode forward voltage drop is 0.3 V, the voltage difference between A and B is.

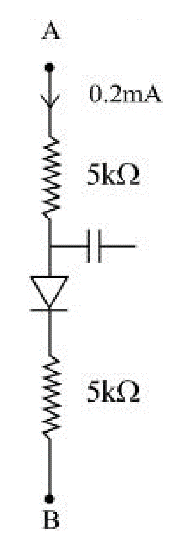

Figure for the question

Answer & explanation+

Correct answer: option 2

The correct answer is Option (2) → 2.3 V

The current of 0.2 mA flows from A to B through the two \( 5\,\mathrm{k\Omega} \) resistors and the diode, which are in series; the diode points from A to B, so it is forward biased and drops 0.3 V. The capacitor branch carries no steady current, so it does not affect the drop. By Kirchhoff's voltage law, \( V_A - V_B \) is the sum of the drops along the path.

    \( I = 0.2\,\mathrm{mA} = 0.2\times10^{-3}\,\mathrm{A} \)
    \( IR = 0.2\times10^{-3}\,\mathrm{A} \times 5\times10^{3}\,\Omega = 1\,\mathrm{V} \text{ for each resistor} \)

    \( V_A - V_B = 1\,\mathrm{V} + 0.3\,\mathrm{V} + 1\,\mathrm{V} = 2.3\,\mathrm{V} \)

Note: A similar question was also asked in CUET (UG) 2023 on 23-06-2023 (Slot 1).
