Area of the region bounded by the curve \(|x|+|y|=1\) and x-axis is:
Answer & explanation
Correct answer: option 1
The correct answer is Option (1) → 1
The curve \(|x|+|y|=1\) is made of four line segments:
\(x + y = 1,\quad -x + y = 1\)
\(-x - y = 1,\quad x - y = 1\)

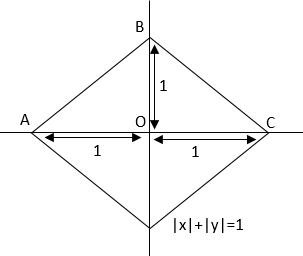

Together they form a square with vertices (1, 0), (0, 1), (−1, 0) and (0, −1).
The x-axis joins the vertices (−1, 0) and (1, 0), so it cuts the square into two equal triangles, one above and one below the x-axis. The region bounded by the curve and the x-axis is one of these triangles, for example the upper one with vertices (−1, 0), (1, 0) and (0, 1).
Its base is 2 and its height is 1:
\( \displaystyle \text{Area} = \frac{1}{2}\times 2\times 1 \)
\(= 1\)
By integration, the upper half is \(y = 1 - |x|\) for \(-1 \le x \le 1\):
\( \displaystyle \text{Area} = \int_{-1}^{1}\left(1-|x|\right)dx = 2\int_{0}^{1}(1-x)\,dx \)
\( \displaystyle = 2\left[x - \frac{x^2}{2}\right]_{0}^{1} = 2\times\frac{1}{2} \)
\(= 1\)
The whole square has area 2 (two such triangles); that is the area enclosed by the curve alone, not the area of the single region cut off by the x-axis.
