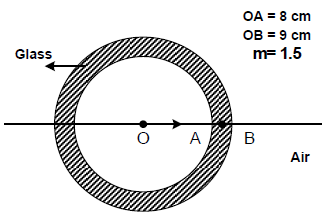

A small filament is at the centre of a hollow glass sphere of inner and outer radii 8 cm and 9 cm respectively. The refractive index of glass is 1.50. Calculate the position of the image of the filament when viewed from outside the sphere. |
9 cm -9 cm – 19 cm + 19 cm |
-9 cm |
For refraction at the first surface, $u = –8 cm, R_1 = –8 cm, μ_1 = 1, μ_2 = 1.5$ $\frac{m_2}{v}-\frac{m_1}{u}=\frac{m_2-m_1}{R_1}$ $\frac{1.5}{v'}+\frac{1}{8}=\frac{0.5}{-8}$ $v' = –8 cm$ It means due to the first surface the image is formed at the centre. For the second surface $u = –9 cm, μ_1 = 1.5, R_2 = –9 cm$ $\frac{m_2}{v}-\frac{m_1}{u}=\frac{m_2-m_1}{R_2}$ $\frac{1}{v}+\frac{1.9}{5}=\frac{1-1.5}{-9}$ $v = –9 cm$ Thus, the final image is formed at the centre of the sphere. |
