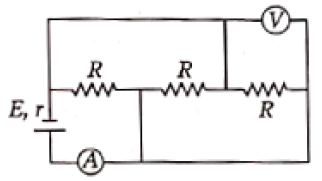

In the circuit shown in figure, ammeter and voltmeter are ideal. If E = 4 V, R = 9Ω and r = 1Ω, then readings of ammeter and voltmeter are |
1 A, 3 V 2 A, 3 V 3 A, 4 V 4 A, 4 V |
1 A, 3 V |

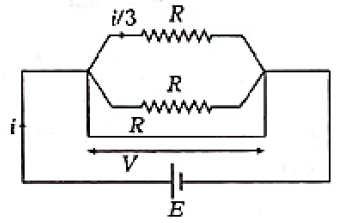

The given three resistors are in parallel. ∴ Current, $\mathrm{i}=\frac{\mathrm{E}}{\mathrm{r}+\mathrm{R} / 3}=\frac{4}{1+3}=1 \mathrm{A}$ $\mathrm{V}=\frac{\mathrm{i}}{3} \mathrm{R}$ or $\mathrm{E}-\mathrm{ir}=\left(\frac{1}{3}\right)(9)=3 \mathrm{V}$ |
