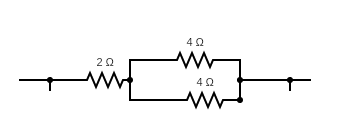

What is the effective resistance ?
.png)
Answer & explanation
Correct answer: option 2
$\text{R}_{eff} = 2 + 4||4$
$\text{R}_{eff} = 2 + 2$
$\text{R}_{eff} = 4 \Omega$
