Two conducting plates P and Q with large surface area A are placed as shown in figure. A charge q is given to plate P. The electric field between the plate at any point is
Answer & explanation
Correct answer: option 2

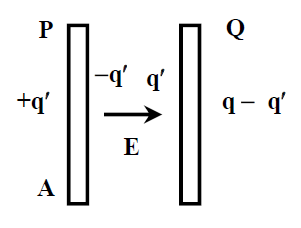

Charge distribution will be as shown
Field at point B
$=\frac{q-q'}{2 A \varepsilon_0}-\frac{q'}{2 A \varepsilon_0}+\frac{q'}{2 A \varepsilon_0}-\frac{q'}{2 A \varepsilon_0}=\frac{q}{2 A \varepsilon_0}$
∴ (B)
