Practicing Success
A ray of light is incident normally on one of the faces of a prism of apex angle 30° and refractive index $\sqrt{2}$. The angle of deviation of the ray is |
15° 75° 30° none of these |
15° |

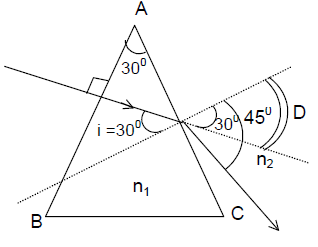

Besides the formulae given for prism, we can always use the basic laws of refraction. Using Snell’s law for the refraction at AC, we obtain $\frac{\sin i}{\sin r}=\frac{n_2}{n_1}$ $⇒\frac{\sin 30°}{\sin r}=\frac{1}{\sqrt{2}}$ $⇒\sin r=1/\sqrt{2}$ ⇒ r = 45°. The angle of deviation, D = 45° - 30° = 15° |
