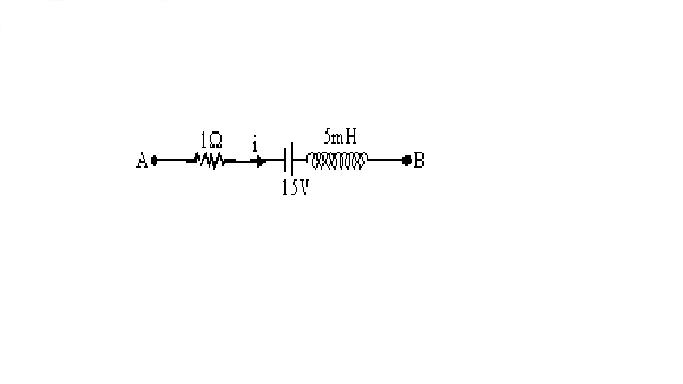

The network shown in figure is a part of a complex network. When current is 5A and is decreasing at the rate of 103 A/s, then VB – VA will be |
5V 10V 15V 20V |
15V |
Voltage across inductance $ V = -L\frac{di}{dt} = 5\times 10^{-3}\times -10^3 = 5V$ Since current is decreasing hence voltage across inductor will be positive. Now Applying Kirchoff law between A and B , VA – (5 x 1) + 15 + 5 = VB Or VB – VA = 15V |
