a b c d |
a |

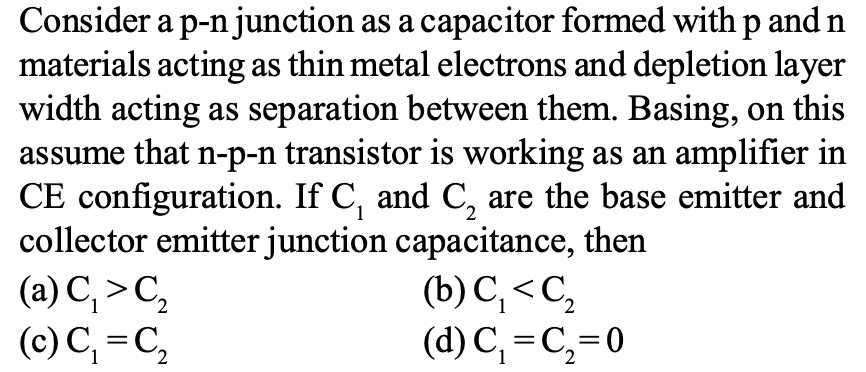

Here, a n-p-n transistor is working as an amplifier in CE configuration. Hence, first junction n-p is forward biased and second junction p-n is reverse biased. The separation between plates (depletion region) depends on forward and reverse voltage. Thus, their capacitance C1 and C2 depends on the applied voltages. |
