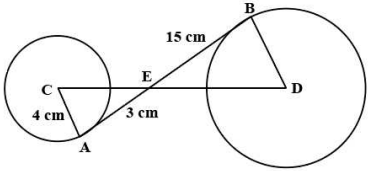

AB is the common tangent to both circles as shown in the given figure. What is the distance between the centers of the circles? |
20 cm 15 cm 10 cm 30 cm |
30 cm |
In the given diagram AB is tangent to both the circles In circle with center C, \(\angle\)CAE = \({90}^\circ\) In circle with center D, \(\angle\)DBA = \({90}^\circ\) = \(\angle\)AEC = \(\angle\)BED (vertically opposite angles) = So, \(\Delta \)CAE is similar to \(\Delta \)DBC = \(\frac{CA}{AE}\) = \(\frac{DB}{BE}\) = \(\frac{4}{3}\) = \(\frac{DB}{15}\) = DB = \(\frac{4\;×\;15}{3}\) = 20 In \(\Delta \)CAE = \( { DE}^{ 2} \) = \( { DB}^{ 2} \) + \( { BE}^{ 2} \) = \( { DE}^{ 2} \) = \( { 20}^{ 2} \) + \( { 15}^{ 2} \) = DE = \(\sqrt {625 }\) = 25 = Distance between the centers of the circles = CE + DE = 5 + 25 = 30 cm Therefore, the distance between the centers of the circles is 30cm. |
