Home/Practice questions/Physics
PhysicsCurrent Electricity

A cell having emf ε and internal resistance r is connected across a v…

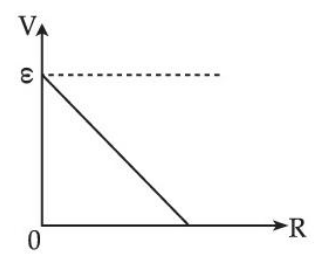

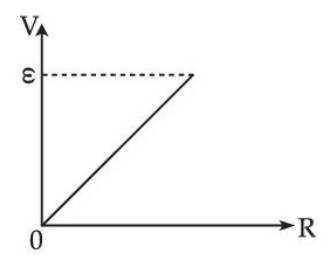

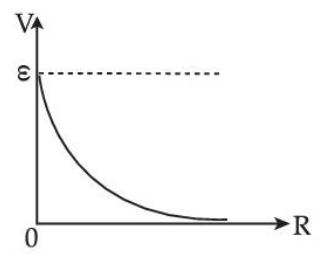

A cell having emf \( \varepsilon \) and internal resistance r is connected across a variable external resistance R. When the resistance R keeps on increasing the graph of potential difference V across the R will be:

Answer & explanation+

Correct answer: option 3

The correct answer is Option (3)

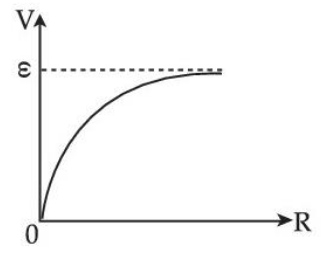

Figure for option 3

The potential difference across \( R \) is the terminal voltage of the cell. The current is \( I = \varepsilon/(R + r) \), so

    \( \displaystyle V = I R = \frac{\varepsilon R}{R + r} = \frac{\varepsilon}{1 + r/R} \)

  • At \( R = 0 \), \( V = 0 \): the graph starts from the origin.

  • For small \( R \), \( V \approx \varepsilon R/r \): it rises steeply at first.

  • As \( R \) becomes very large, \( r/R \rightarrow 0 \) and \( V \rightarrow \varepsilon \): the curve bends over and approaches \( \varepsilon \) without reaching it.

So the graph is a curve rising from zero and levelling off towards \( \varepsilon \), as in Option (3).

Note: A similar question was also asked in CUET (UG) 2023 on 22-05-2023 (Slot 3).
