A circuit consists of five identical conductors as shown in the figure. The two similar conductors are added as indicated by the dotted lines. The ratio of resistances before and after addition will be : |
$\left(\frac{7}{5}\right)$ $\left(\frac{3}{5}\right)$ $\left(\frac{5}{3}\right)$ $\left(\frac{6}{5}\right)$ |
$\left(\frac{5}{3}\right)$ |

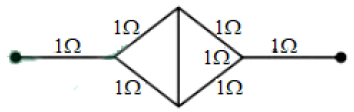

Before addition, Total resistance of the circuit is R1 = 5Ω After addition the two conductors, the circuit will acquire the form as shown in figure It is a balanced Wheatstone bridge. Resistance of central conductor is ineffective. ∴ Total resistance of the circuit is $R_2=1 Ω+\frac{(2 Ω)(2 Ω)}{(2 Ω+2 Ω)}+1 Ω=1 Ω+1 Ω+1 Ω=3 Ω$ ∴ $\frac{R_1}{R_2}=\frac{5}{3}$ |
