Two identical metal plates are given positive charges Q1 and Q2 (< Q1) respectively. If they are now brought close together to form a parallel plate capacitor with capacitance C, the potential difference between them is : |
(Q1 + Q2) / 2C (Q1 + Q2) / C (Q1 – Q2) / C (Q1 – Q2) / 2C |
(Q1 – Q2) / 2C |

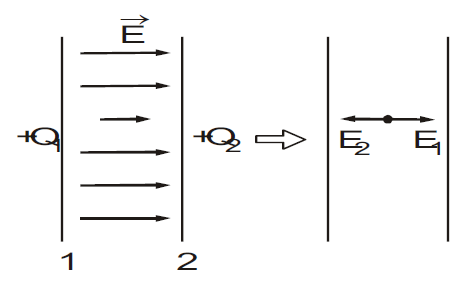

Electric field with the plates $\vec{E}=\vec{E}_{Q_1}+\vec{E}_{Q_2}$ $E =E_1-E_2$ $=\frac{Q_1}{2 A \varepsilon_0}-\frac{Q_2}{2 A \varepsilon_0}$ E = $\frac{Q_1-Q_2}{2 A \varepsilon_0}$ ∴ Potential difference between the plates $V_A-V_B =E . d=\left(\frac{Q_1-Q_2}{2 A \varepsilon_0}\right) d$ $=\frac{Q_1-Q_2}{2\left(\frac{A \varepsilon_0}{d}\right)}$ $=\frac{Q_1-Q_2}{2 C}$ |
