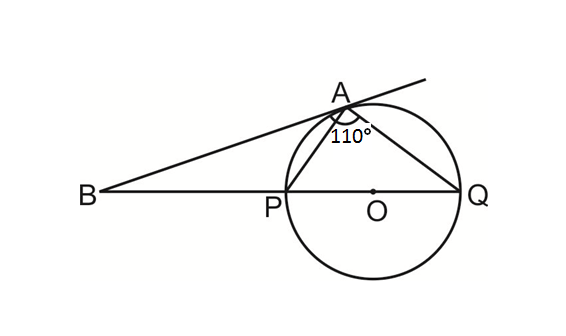

The tangent at point A on the circle with center O intersects the diameter PQ of the circle, when extended at point B. If ∠BAQ = 110°, then ∠APQ is equal to ? |
60° 80° 70° 90° |
70° |

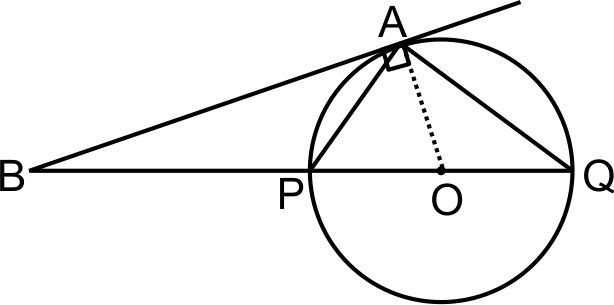

∠BAQ = ∠BAP + ∠PAQ [∠PAQ = 90°,angle made by diameter] ∠BAP = 110° - 90° = 20° OA is radius of the circle and make 90° angle with tangent BA i.e. ∠BAO = 90° ∠BAQ = ∠BAO + ∠OAQ 110° = 90° + ∠OAQ ∠OAQ = 20° ∴ ∠OAQ = ∠AQO [angle by radius] ⇒ OA = OQ ⇒ ∠OAQ = ∠AQO = 20° Now, In ΔPAQ ∠APQ + ∠PAQ + ∠AQP = 180° ∠APQ + 90° + 20° = 180° ∠APQ = 70° |
