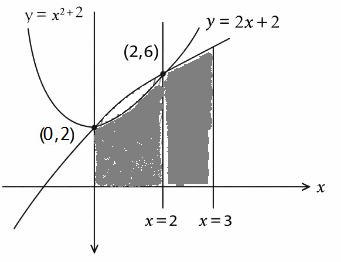

Which of the following regions will represent the shaded area in the given figure?

Answer & explanation
Correct answer: option 1
The correct answer is Option (1) → \(\left\{(x, y): 0 \le y \le x^2 + 2,\ 0 \le y \le 2x + 2,\ 0 \le x \le 3\right\}\)
The parabola \(y = x^2 + 2\) and the line \(y = 2x + 2\) meet where
\(x^2 + 2 = 2x + 2\)
\(x(x - 2) = 0\)
\(x = 0 \text{ or } x = 2\)

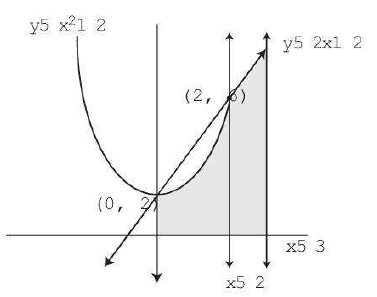

which gives the points (0, 2) and (2, 6) marked in the figure.
The shaded part lies above the x-axis (\(y \ge 0\)), between the y-axis and the line x = 3 (\(0 \le x \le 3\)), and its top edge is the lower of the two curves:
for \(0 \le x \le 2\): \(x^2 + 2 \le 2x + 2\), so the top edge is the parabola;
for \(2 \le x \le 3\): \(2x + 2 \le x^2 + 2\), so the top edge is the line.
A point lies below the lower curve exactly when it lies below both curves, so the region is
\(0 \le y \le x^2 + 2,\quad 0 \le y \le 2x + 2,\quad 0 \le x \le 3\)
Why the other options are incorrect
Option (2) \(\left\{(x, y): 0 \le y \le x^2 + 2,\ y \ge 2x + 2,\ x \le 3\right\}\) — Incorrect. \(y \ge 2x + 2\) is the part above the line; the shaded part is below it, for example (1, 1) is shaded but 1 < 2(1) + 2 = 4.
Option (3) \(\left\{(x, y): y \ge x^2 + 2,\ x \le 2,\ x \ge 0\right\}\) — Incorrect. \(y \ge x^2 + 2\) is the part above the parabola, which is not shaded, and it leaves out the strip from x = 2 to x = 3.
Option (4) \(\left\{(x, y): y \ge x^2 + 2,\ x \ge 0,\ x \ge 3\right\}\) — Incorrect. It describes points above the parabola to the right of x = 3, outside the shaded part altogether.
Note: NTA dropped this question. For the benefit of students and to give them additional practice, the question has been suitably modified so that it has one clear answer.
