Physics
Alternating Current
a
b
c
d

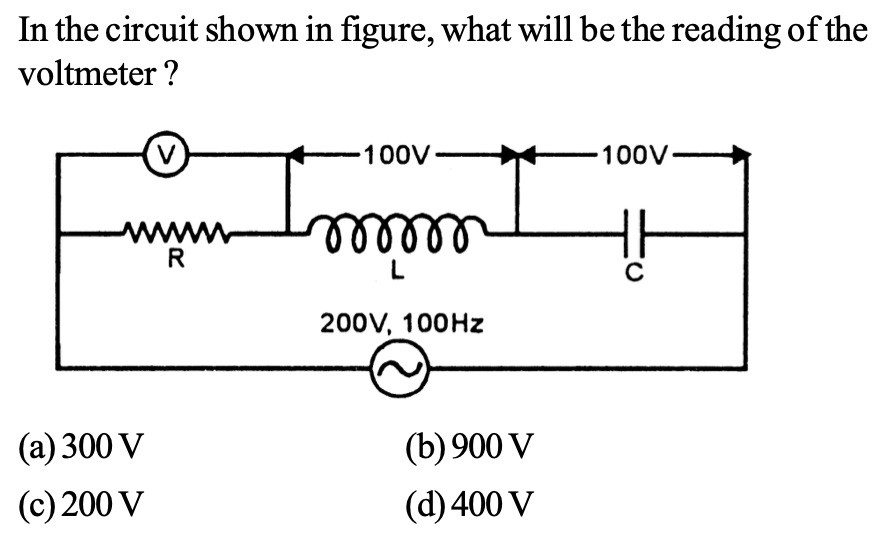

$\text{In the given circuit } V^2 = V_R^2 + (V_L - V_C)^2$
$\Rightarrow V_R = \sqrt{V^2 - (V_L - V_C)^2} = \sqrt{200^2 - (100 - 100)^2} = 200V$
