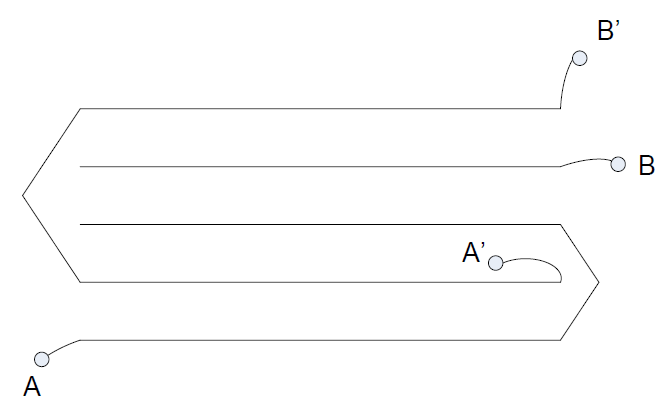

The equivalent capacitance between A and B is (each of the capacitors obtained is of capacitance equal to C)
Answer & explanation
Correct answer: option 3

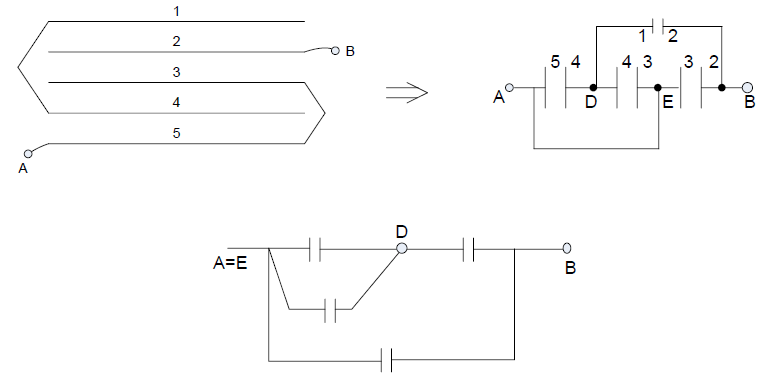

$\Rightarrow C_{A B}=\frac{2 C \times C}{3 C}+C=\frac{5 C}{3}$
The equivalent capacitance between A and B is (each of the capacitors obtained is of capacitance equal to C)
Correct answer: option 3
$\Rightarrow C_{A B}=\frac{2 C \times C}{3 C}+C=\frac{5 C}{3}$
