Two circles with centres P and Q of radii 7 cm and 3 cm respectively, touch each other externally at a point A. BC is a direct common tangent to these two circles where B and C are the points on the circles respectively. The length of BC is : |
$3\sqrt{21}$ cm $\sqrt{21}$ cm $2\sqrt{21}$ cm $4\sqrt{21}$ cm |
$2\sqrt{21}$ cm |

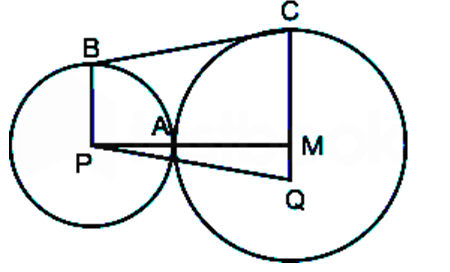

We have, The radii of both circles = 3 cm and 7 cm Join P to Q and B. Join Q to C. Draw PM ⊥ CQ. Now PM = BC, as they are opposite sides of rectangle PMBC. = PQ = 7 + 3 = 10 cm. = QM = 7 cm – 3cm = 4 cm ⇒ PM = \(\sqrt {(PQ)^2 - (QM)^2}\) = \(\sqrt {(10)^2 - (4)^2}\) = 2\(\sqrt {21}\) ⇒ PM = BC = 2\(\sqrt {21}\) cm |
