Question:

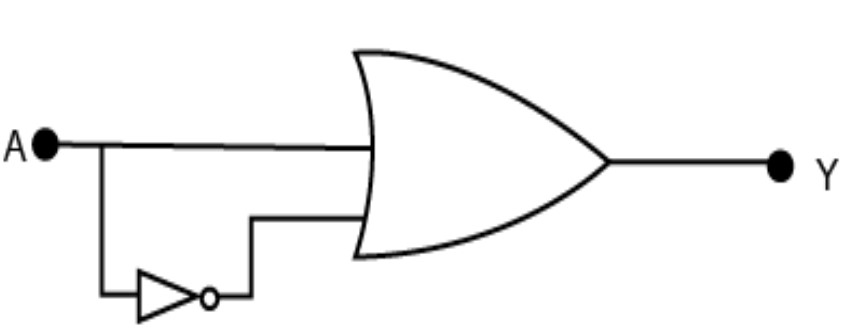

What is the correct boolean expression for the given circuit?



Options:

A+1 = 1

A+1 = 0

A+A' = 1

None of these

Correct Answer:

A+A' = 1

Explanation:

The input A directly goes into the OR gate and also first passes through NOT gate, giving another input of A' to the OR gate.
