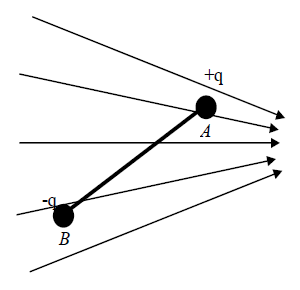

Two connected charges of +q and -q respectively are a fixed distance AB apart in a non uniform electric field whose lines of force are shown in the figure. The resultant effect on the two charges is |
a torque in the plane of the paper and no resultant force a resultant force in the plane of the paper and no torque a torque normal to the plane of the paper and no resultant force a torque normal to the plane of the paper and a resultant force in the plane of the paper |
a torque normal to the plane of the paper and a resultant force in the plane of the paper |
The electric field line show that there is negative charge present nearby the positive charge. Now, F1>F2 because of non-uniform electric field.
∴ there will be a force in the plane of paper.
Next there will be a torque to align the charge. i.e. to move +ve charge downwards and −ve charge upward which will result of a torque normal to the plane of the surface. |
