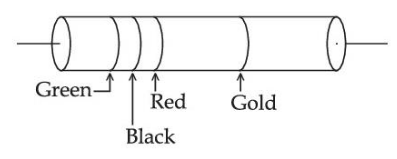

The resistance of the resistor given in the figure is: |
$(8100 \pm 5 \%) \Omega$ $(8100 \pm 10 \%) \Omega$ $(5000 \pm 10 \%) \Omega$ $(5000 \pm 5 \%) \Omega$ |
$(5000 \pm 5 \%) \Omega$ |
The correct answer is Option (4) → $(5000 \pm 5 \%) \Omega$ The resistance of a Resistor is given by the table having indexing of colour variable - $R=5000 \pm 5 \%$ Green corresponds to 5 (for the first digit). Black corresponds to 0 (for the second digit). Red is the multiplier $10^2=100$ Gold corresponds to a tolerance of ±5%. |
