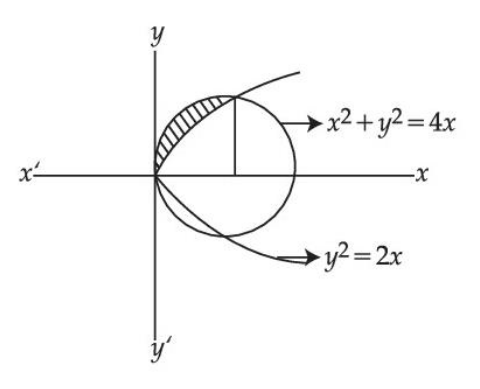

The area of the shaded portion
is:
Answer & explanation
Correct answer: option 1
The correct answer is Option (1) → \(\left(\pi-\displaystyle\frac{8}{3}\right)\) sq. units
The circle \(x^2 + y^2 = 4x\) is \((x-2)^2 + y^2 = 4\): centre (2, 0), radius 2. Its upper half is \(y = \sqrt{4x - x^2}\). The upper half of the parabola \(y^2 = 2x\) is \(y = \sqrt{2x}\).
Points of intersection: putting \(y^2 = 2x\) in the circle,
\(x^2 + 2x = 4x\)
\(x(x - 2) = 0\)
\(x = 0 \text{ or } x = 2\)
At x = 2, y = 2, so the curves meet at (0, 0) and (2, 2) in the first quadrant. The shaded part lies between the circle (above) and the parabola (below) from x = 0 to x = 2:
\( \displaystyle A = \int_{0}^{2}\sqrt{4x - x^2}\,dx - \int_{0}^{2}\sqrt{2x}\,dx \)
The first integral is the area under the upper semicircle from x = 0 to the centre x = 2, which is a quarter of the circle:
\( \displaystyle \int_{0}^{2}\sqrt{4x - x^2}\,dx = \frac{1}{4}\pi(2)^2 = \pi \)
The second integral:
\( \displaystyle \int_{0}^{2}\sqrt{2}\,x^{1/2}\,dx = \sqrt{2}\left[\frac{2}{3}x^{3/2}\right]_{0}^{2} \)
\( \displaystyle = \sqrt{2}\times\frac{2}{3}\times 2\sqrt{2} = \frac{8}{3} \)
Hence
\( \displaystyle A = \pi - \frac{8}{3} \text{ sq. units} \)
